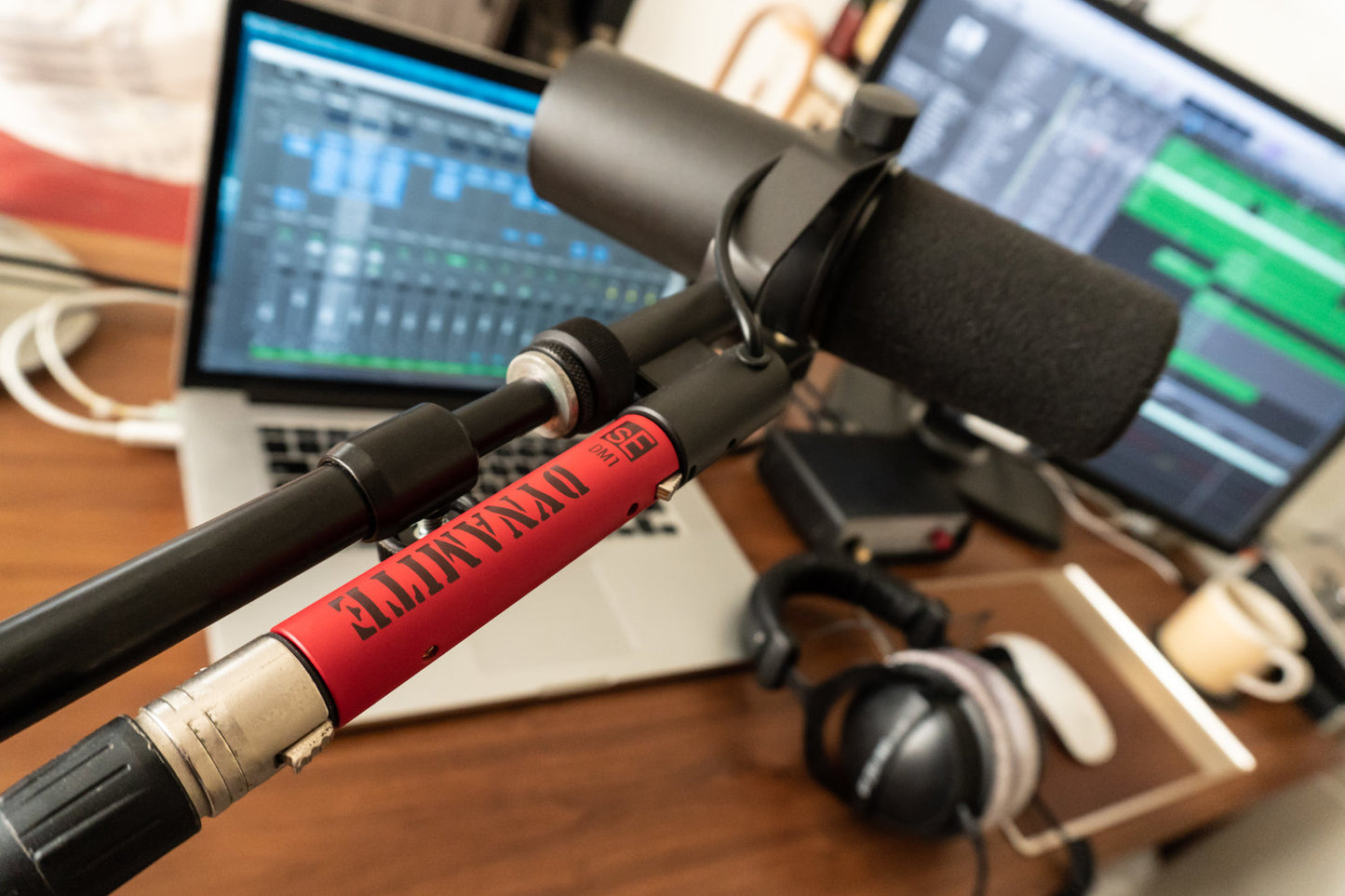

Whether you’re a podcaster, recording engineer, or running live sound, the DM1 is the perfect way to boost the signal from a passive mic, reduce the likelihood of interference, and provide significantly improved level to your preamp – all without adding noise or coloration. Its output impendence is also the lowest in its class, allowing it to drive long cable runs while reducing susceptibility to RF interference, buzz and hum.
Reliable operation even in demanding on-stage applications in difficult environments is ensured by the roadworthy and slim all-metal design, robust construction, and high-quality manufacturing standards.
Frequency Range: 10 Hz - 120,000 Hz (-0.3 dB)
Gain: 28 dB (load 1kOhms)
Max output level (0.5% THD): 8.3 dBV (2.6 V)
Output noise level: 9 μV (JIS-A)
Powering: 48 Volts according toIEC 61938
Electrical impedance: 135 Ohms
Recommended load impedance: >1k Ohms
Current consumption: 3.0 mA
Connectivity: 3-pin male/female XLR connector
Dimensions: Diameter: 19 mm (0.75 in.) Length: 95.5 mm (3.76 in.)
Weight: 80 g
